Hydraulic Cylinders
Problems may be developing with your hydraulic cylinders and could go undetected without trained and skilled technicians to diagnose the issue. Regardless of what type of equipment you operate, we can provide comprehensive, yet affordable, solutions to handle all your hydraulic cylinder seal and service requirements.
Hydraulic Hoses
At Engineered Hydraulics in South Jersey, we focus on providing our customers with the highest quality of hydraulic hoses. Our team is dedicated to efficiently conducting any necessary repairs or assembly for your hose so that you can quickly get back to work.
We have the proper disassembly equipment to break down cylinders of all sizes

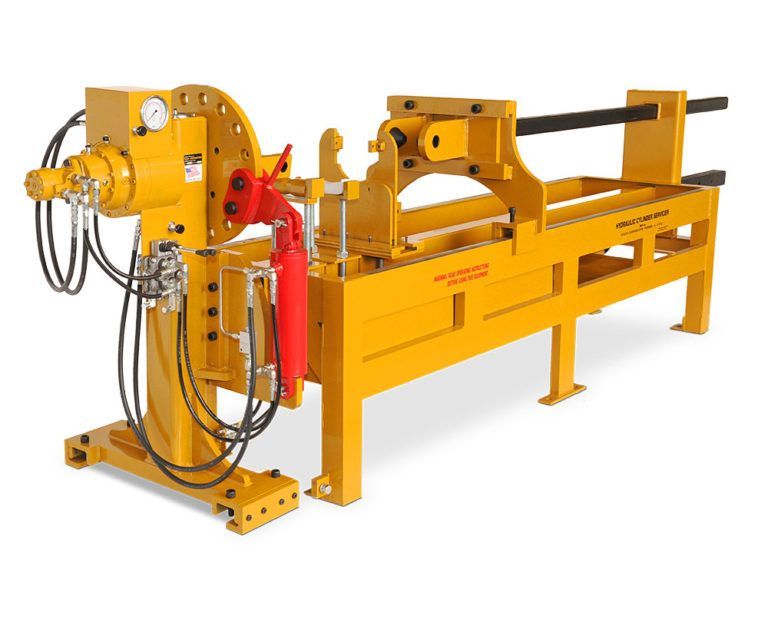

HCS-40 Hydraulic Cylinder Servicer
Description
The HCS-40 will service all current CAT® cylenders
The HCS-40 is available certified CЄ
This model is essentially the same as the HCS-30, has identical features, but will handle cylinders to 26 feet (7.9 m) in length, 22 inches (558.8 mm) in diameter and provide 40,000 lb-ft (5520 kg-m) of available torque. The HCS-40 makes disassembling and reassembling hydraulic cylinders easier than ever with its massive 40,000 lb-ft (5520 kg-m) of available torque and built-in High Speed Hydraulic Nut Runner. Rod extraction is a breeze with the 7.5 tons of extraction force. Typically used on large construction equipment and mining equipment, alike, the HCS-40 is the most versatile and economical model in the current Tuxco line of equipment. Rest assured with a Tuxco HCS-40 Hydraulic Cylinder Servicer, you will be repairing hydraulic cylinder safer, faster, and more profitably then ever!
Specifications
Tuxco Model HCS-40
Torque Capacity 40,000 lb-ft (5520 kg-m) Torquer Cylinder Double Acting
Max. Capacity Cylinder Length (Extended) 26 ft. (7.9 m)
Max. Capacity Cylinder Diameter 22 in. (558.8 mm)
Max. Required Floor Space (Length) 33 ft. (10.0 m)
Max. Required Floor Space (Width) 3 ft. (.9 m)
Max. Required Air Space 9 ft. (2.7 m)
Power Required All Voltage 50/60HZ/3 Ph
Horsepower 5 HP
Nut Runner Torque 5,000 lb-ft (690 kg-m)
Nut Runner Speed 8 RPM
Built-In Spanner Wrench Yes
Access Required Front
Torquer Stroke Speed 10 in. Stroke (13.5 sec. / ft.)
Rod Extraction/Installation Speed 48 in. Stroke (5.2 sec./ ft.)
Pendant Control Yes
Extraction Force 14,000 lbs. (62.3 kN)
Available Conformite Europeen (CE) Yes
Downloads

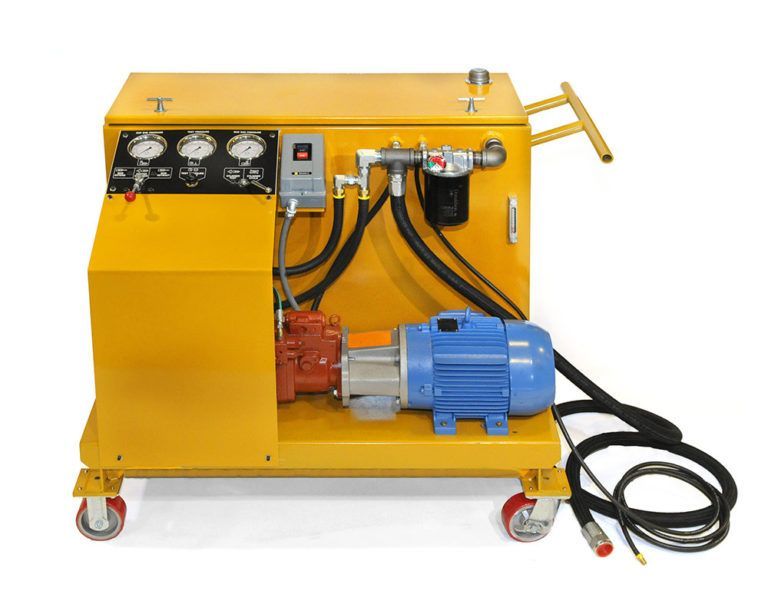

HCT-3000 Hydraulic Cylinder Tester
Description
When your business is replacing hydraulic cylinders for your own equipment or that of a customer, knowing that each cylinder repair is perfect before it is reinstalled is essential. Being able to guarantee that there are no rod or piston seal leaks and that the cylinder will work properly means greater profit, satisfied customers and long term customer loyalty.
The high volume, high pressure hydraulic system and precise controls and gauges of the HCT-3000 Hydraulic Cylinder Tester provide a high speed testing capability. With 3000 PSI testing capacity, all cylinder repairs can be guaranteed not to fail when reinstalled into the field. A low cost insurance policy, that proves to be a valuable addition to any hydraulic repair facility.
Specifications
Tuxco Model HCT-3000
Maximum Testing Pressure 3000 psi (207 bar)
Horsepower 71/2 HP
Hydraulic Pump Capacity 20 GPM (76 LPM)
Power Required All Voltage 50/60HZ/3 Ph Reservoir Capacity 60 Gallons (227 Liters)
Features: High Pressure Hoses with Quick Disconnects Hose Storage Rack Liquid Filled Test Gauges Quick Disconnect Adapters Shop Air Adapter for Oil Removal After Testing Low Friction Caster Wheels
Optional Accessories:
Item No.17103 SAE 61 Series Flange Kit: 1/2" Flange Set, Complete 3/4" Flange Set, Complete 1" Flange Set, Complete 11/4" Flange Set, Complete 11/2" Flange Set, Complete 2" Flange Set, Complete Item No.17104 SAE 62 Series Flange Kit: 1/2" Flange Set, Complete 3/4" Flange Set, Complete 1" Flange Set, Complete 11/4" Flange Set, Complete 11/2" Flange Set, Complete 2" Flange Set, Complete
